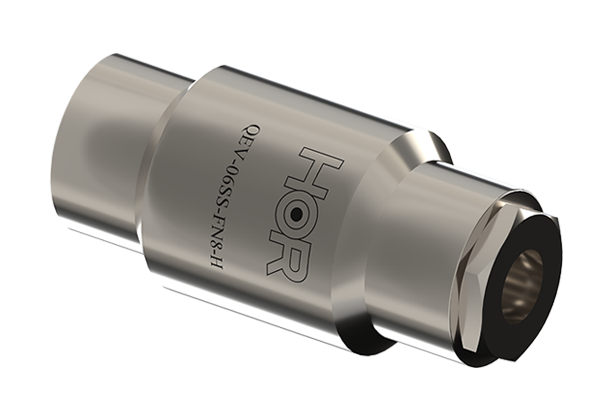

Quick Exhaust Valve
The quick exhaust Valve is designed to rapidly bleed the control pressure from an actuator or other device .It is typically used on safety valves, control valves, or other devices that must respond quickly when the control signals are removed . It is easy to install and maintain. No special tools are needed for repair and assembly
Features
«Standard 316 SS body; 6Mo grade is optional for special operating conditions.
«Large CV factor assures fast system response.
«Small operating noise.
«Type to NACE MR-0175 available.
«Standard Buna N seals,other seals available.
«SIL3 certification is optional.
CODE
PRODUCT CODE | PRESSURE | BODY MATERIAL | port type | size | Medium | NACE MR-0175 |
QEV- | 10 | 6M | FN | 8- | H | |
D2-200psi | SS-316SS | FNPT | 6-3/8" | H-hydraulic | empty- NO | |
06-6000psi | 6M-6Mo | 8-1/2" | P-Pneumatic | N1- -18~120℃，yes | ||
10-10000psi | N2- -40~120℃，yes | |||||
| For special requirement please contact the Sales Department. | ||||||
fusible valve
A fusible valve is a "block-and-vent" type, temperature-sensitive flow control device. When the valve body temperature exceeds the melting point of the fusible alloy (caused by proximity to a fire or high temperature), the internal spring releases the valve disc, thereby blocking the inlet supply pressure and venting the downstream (receiving circuit) pressure through the vent port.
Fusible valves are used to shut down safety valve actuators, isolating potential fuel sources from ignition sources.
Features
«All-316 stainless steel construction
«Fusible Valve - Common Temperature Options: 70℃, 85℃, 105℃, 124℃
«Maximum operating pressure: 10,000 PSI
«Wet part NACE MR-0175 available.
CODE
PRODUCT CODE | PRESSURE | BODY MATERIAL | port type | size | NO/NC | melt temperature |
FPV- | 10 | 6M- | FN | 4- | NO | 70 |
10-10000psi | SS-316SS | FNPT | 4-1/4" | NO-normal open | 70℃ | |
6M-6Mo | NC-normal close | 85℃ | ||||
105℃ | ||||||
124℃ | ||||||
The melting temperature of the fusible component can be customized to various specifications as required.For special requirement please contact the Sales Department. | ||||||
