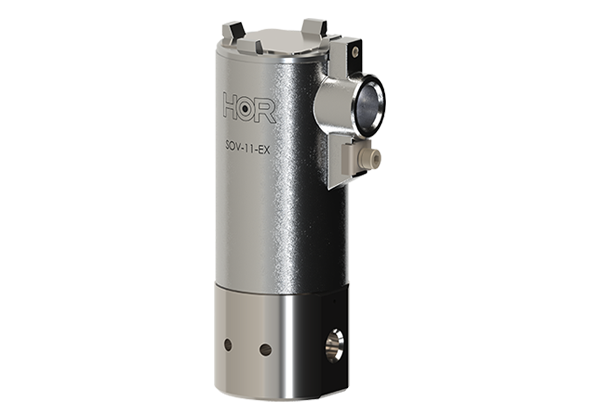

This solenoid valve is a two-position three-way valve, which is a normally closed valve controlled by an electromagnetic actuator. It can be used independently or in conjunction with a main-stage valve. The product adopts an explosion-proof shell for protection, and the valve body is made of 316L stainless steel. The equipment has a fast response, stable operation, a long mean time between failures, and is convenient to maintain.
Features
Valve body material：Stainless Steel 1.4404 (316L)
Flow rate：6.0 L /min&90 L /min
Working Pressure：Up to 700Bar. Maximum working pressure varies according to valve model.
Low Power Consumption：3W (standard) and 1W (Low Power)
Temperature Range：-30℃~90℃
Leakage：Less than 2ml/hr
Cycle：100% Duty cycle, 25yr life up to 1 million cycles
Working medium: Medium Water Glycol and hydraulic mineral oil
Import and export interfaces：1/4” NPT, 3/8”BSP，1/4” BSP & Manifold Mount
Cable interface：1/2”NPT & M20 Conduit
Model | Flow rate | Working Pressure | Operation | Import and export interfaces |
SOV-11-EX D | 6.0 L /min | 3/2 NC | 1/4” NPT, 1/4” BSP & Manifold Mount | |
SOV-11-EX H | 90 L /min | 50~350Bar | 2/2&3/2 NC | 1/4” NPT, 3/8” BSP & Manifold Mount |
