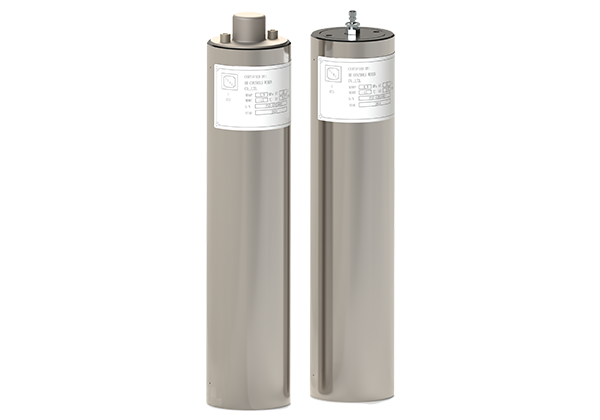

The versatility of piston accumulators allows them to be used in 90% of applications-ranging from small-volume units to those with capacities of thousands of liters, and up to a maximum operating pressure of 30,000 PSI. Piston hydraulic accumulators can meet the standard or custom design requirements of various industries.
Features
★ Multiple sealing material options are available, including NBR, fluoroelastomer, and Teflon
★ Both the size and type of the fluid outlet design can be customized.
★ Standard sealing materials are suitable for petroleum-based hydraulic oils.
★ Designed and manufactured in compliance with ASME VIII standards.
★ Standard carbon steel construction, suitable for various onshore oil and gas field.
STANDARD | TYPE | VOLUME | PRESSURE | port type | size | Medium |
C- | PI- | 0.25- | 6000- | FN- | 8- | H |
C-normal | PI-piston | 0.25 | 6000psi | FN- | 8-1/2" | H-hydraulic oil |
AC-ASME | 10000psi | HF- | 6-3/8" | - | ||
- | - | 20000psi | - | 4-1/4" | - | |
- | - | 35 | 30000psi | - | - | - |
For special requirements, including dimensions, sealing materials, special connections, etc., please contact the Sales Department. | ||||||
