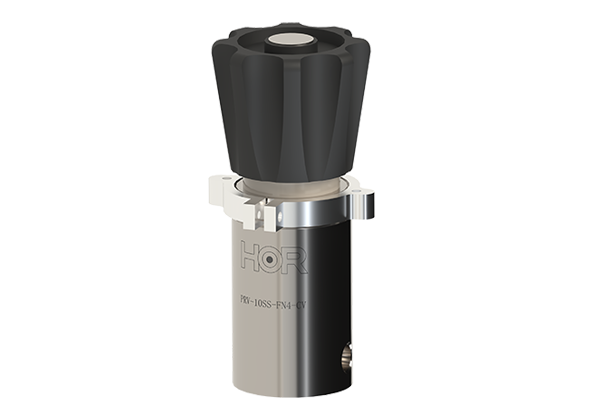

Turning the handle clockwise will increase the spring exerted tension to increase the regulator output pressure. Rotating the handle counter-clockwise will decrease the regulator output pressure. When the downstream pressure is higher than the set pressure the downstream pressure will relief from the vent port.
Features
«316 stainless steel construction makes the valve have good corrosion resistance.
«Main valve metal to metal seal.
«Maximum inlet pressure:10000 psig(689 bar).
«Working temperature:-15°F~165°F(-26℃~74℃).
«Spring loaded pressure reducing regulator.
«Piston-sensed design ensures safety and reliability
«Downstream pressure vent(relief) port optional.
«Flow coefficient : 0.12
PRODUCT CODE | INLET PRESSURE | BODY MATERIAL | PORT TYPE | SIZE | OUTLET PRESSURE | VENT (DOWN STREAM) |
PRV- | 10 | SS- | FN | 4- | B | V |
10-10000psi | SS-316SS | FNPT | 6-3/8" | B-200~10000 psig | empty-without vent | |
8-1/2" | C-50~6000 psig | V-1/4 FNPT | ||||
4-1/4" | D-25~4000 psig | |||||
E-15~2500 psig | ||||||
F-5~800 psig | ||||||
G-5~300 psig | ||||||
For special requirement please contact the Sales Department. | ||||||
